Processing 高效控制管理图形方法(二)

CSDN博客站点·同文地址: http://blog.csdn.net/fddxsyf123/article/details/70992924

上节介绍了基本管理变换参数的方法，这节继续升入。

首先看这样一个例子：

void setup()
{
  size(600, 600);
  frameRate(60);
  smooth();
}

void draw()
{
  background(250);

  Draw_Ellipse(width/2,height/2,0,100);

  pushMatrix();
  translate(width/2,height/2);
  rotate(radians(frameCount));
  Draw_Ellipse(100,0,0,60);
  popMatrix();

  pushMatrix();
  translate(width/2,height/2);
  rotate(radians(-frameCount));
  Draw_Rect(200,0,frameCount*2,60);
  popMatrix();
}

void Draw_Ellipse(float x, float y, int v, int r)
{
  pushMatrix();
  translate(x, y);
  rotate(radians(v));
  ellipse(0, 0, r, r);
  popMatrix();
}

void Draw_Rect(float x, float y, int v, int r)
{
  pushMatrix();
  translate(x, y);
  rotate(radians(v));
  rectMode(CENTER);
  rect(0, 0, r, r);
  popMatrix();
}

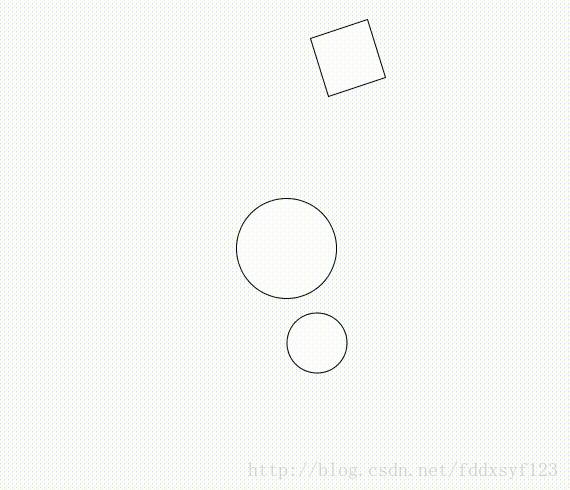

也就是说，变换的属性是可以被继承的,也就是数值叠加。熟悉三维软件的读者都会习惯采用层级关系管理场景，并且应用层级的变换属性继承关系可以制作变幻多端的动画。如上例子所示的如行星公转自转的例子。当然三维渲染更能体验其方便之处。

OK！咱再做一个小例子。

float y1;
float y2;
float y3;
float y4;
float y5;
float t1;
float t2;
float t3;
float t4;
float t5;
void setup()
{
  size(500, 500);
}

void draw()
{
  background(0);
  Draw_Button();
}
void Draw_Button()
{
  {
    t1 ++;
    t2 ++;
    t3 ++;
    t4 ++;
    t5 ++;
    t1 = constrain(t1, 0, 60);
    t2 = constrain(t2, 0, 60);
    t3 = constrain(t3, 0, 60);
    t4 = constrain(t4, 0, 60);
    t5 = constrain(t5, 0, 60);
    y1 = easeInOut_Expo(t1, 0, 400, 60);
    y2 = easeInOut_Expo(t2, 0, 400, 60);
    y3 = easeInOut_Expo(t3, 0, 400, 60);
    y4 = easeInOut_Expo(t4, 0, 400, 60);
    y5 = easeInOut_Expo(t5, 0, 400, 60);
  }

  pushMatrix();
  translate(0, y1);
  rect(width/5*0, 0, 100, 100);
  popMatrix();
  pushMatrix();
  translate(0, y2);
  rect(width/5*1, 0, 100, 100);
  popMatrix();
  pushMatrix();
  translate(0, y3);
  rect(width/5*2, 0, 100, 100);
  popMatrix();
  pushMatrix();
  translate(0, y4);
  rect(width/5*3, 0, 100, 100);
  popMatrix();
  pushMatrix();
  translate(0, y5);
  rect(width/5*4, 0, 100, 100);
  popMatrix();
}
void mousePressed()
{
  if (overRect(width/5*0, 0, 100, 500))
  {
    t1 = 0;
  } else if (overRect(width/5*1, 0, 100, 500))
  {
    t2 = 0;
  } else if (overRect(width/5*2, 0, 100, 500))
  {
    t3 = 0;
  } else if (overRect(width/5*3, 0, 100, 500))
  {
    t4 = 0;
  } else if (overRect(width/5*4, 0, 100, 500))
  {
    t5 = 0;
  }
}

boolean overRect(int x, int y, int width, int height) {
  //rect(x, y, width, height);
  if (mouseX >= x && mouseX <= x+width &&
    mouseY >= y && mouseY <= y+height) {
    return true;
  } else {
    return false;
  }
}

float easeInOut_Expo(float t, float b, float c, float d) {
  if (t==0) return b;
  if (t==d) return b+c;
  if ((t/=d/2) < 1) return c/2 * pow(2, 10 * (t - 1)) + b;
  return c/2 * (-pow(2, -10 * --t) + 2) + b;
}

可以看到采用此方法控制动画条理相当清晰，每个图形都有自己的位置参数，同时被translate函数控制着位置偏移。当鼠标点击时改变translate()其参数值便可得到动画效果。读者可以借鉴这种控制思路。
